Overview

• Universal marking system for control panels and components.
• Rapid installation using pre-marked or write-on tiles fixed to unique rail system.
• Rail mounted in seconds using self-adhesive backing and/or rivets and screws.
• Print inserts on-site with the ProMark Pro portable marking machine.
• Print inserts using your own computer and printer with Partex PF material.
• Large, clear legends for instant identification even at a distance.
• The fastest, neatest rail marking system on the market.

PS Marking System

PARTEX PART NUMBER	DESCRIPTION	PACK QUANTITY
PS 20-BP WHITE	Self-Adhesive Mounting Rail in White	10 off 1 metre lengths
PS 20-BP BLACK	Self-Adhesive Mounting Rail in Black	10 off 1 metre lengths
PS 20-1/3 *	Snap on single digit numbers	50 pieces
PS 20-1/3 *	Snap on single digit letters and symbols	20 pieces
PS 20-1	White Spacer Module (17.5mm)	20 pieces
PS 20-2	White Spacer Module (35mm)	20 pieces
PS 20-3	White Spacer Module (52.5mm)	20 pieces
PS 20-MET	White Spacer Module (1000mm)	10 off 1 metre lengths

* Note: When ordering single digit numbers, letters and symbols, please state which ident you require. e.g. ordering example: 1 PACK (50 PIECES) PS20-1/3 NUMBER 1.

Specification

DESIGN:	Rail: White or black mounting rail with self-adhesive backing. Marker Tiles: Marking profile which snaps onto mounting rail.
MATERIAL:	Rigid cadmium-free PVC to special Partex formula.
STANDARD LEGENDS:	0-9, A-Z, +, -, ., /, earth and blank. Black text onto a white tile.
TEMPERATURE RANGE:	-20°C to +60°C.
RESISTANCE:	Self-extinguishing, good resistance to chemicals, most solvents, gamma and UV radiation.

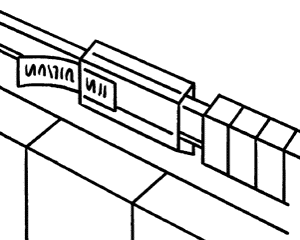

Application
