CCG D1W Captive Component Cable Gland for Steel Wire Armoured Cable For indoor use
Navigate to:
CCG Home |
CCG Industrial/Mining Cable Glands
|
CCG Unarmoured Cable
Glands |

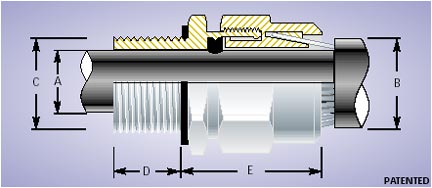

CCG D1W Captive Component Cable
Gland for Steel Wire Armoured
Cable For indoor use.
Features and Benefits
• For use indoors.
• Two piece handling, no loose
parts.
• Freely rotating captive cone,
providing an armour clamp and
earth bond
without twisting the armour
wires.
• Factory fitted captive
elastomeric inner seal for
ingress protection.
• Seals on the inner sheath of
the cable.
• Manufactured from high quality
brass and nickel plated.
• Complete with polypropylene
sealing gasket.
CCG reserves the right to make
alterations to the technical
data, dimensions, designs and
products available without
notice. The illustrations cannot
be considered binding. Please
contact us for assistance.

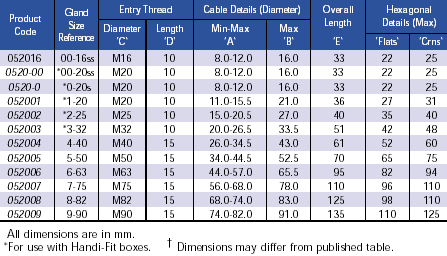

Technical Data
Type - D1W
Gland Material - Brass (Nickel
Plated)
Seal Material - Thermoplastic
Elastomer (Silicone on request)
Cable Type - Steel Wire Armour
Armour Clamping - Captive
Rotating Cone and Cone Ring
Sealing Area - Inner sheath
Optional Accessories - Locknut,
Shroud, Earth Tag, Adaptor /
Reducer
