SE-Types (Two Bolt Single Way Cleats)

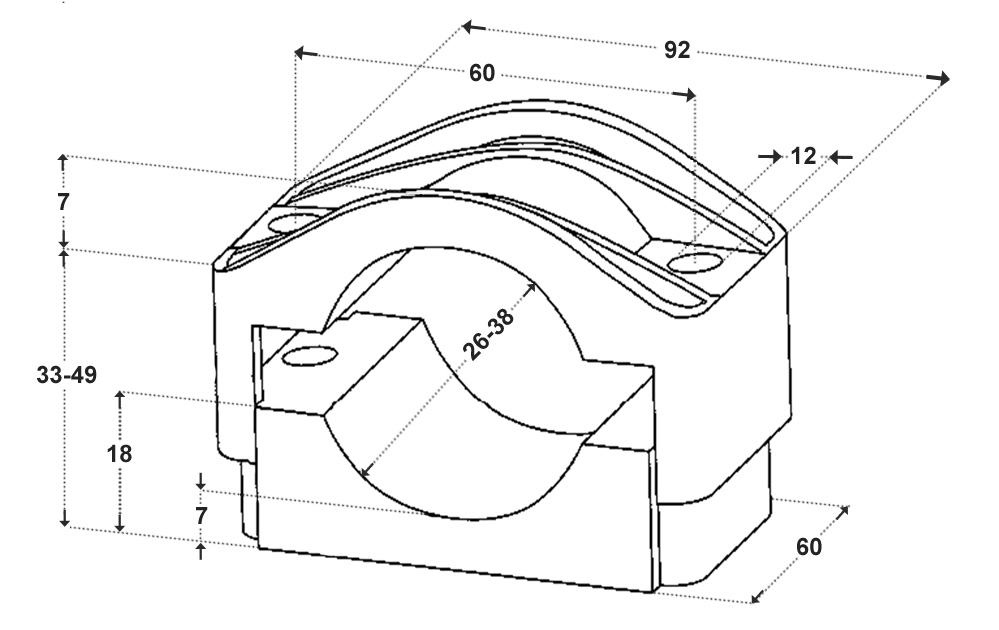

SE26-38 (Two Bolt Single Way Cleat)
Applications:
For the mounting of one single- or multi-conductor
cable. For low, medium and high voltage cables with
diameters of 26 - 38 mm as well as conduits and hoses.
Characteristics:
· Made of glass fibre reinforced polyamide (PA).
· Resistant to oils, UV, ozone, salts, moisture, acids
and even radioactive emissions.
· Self-extinguishing V-0 (UL94), halogen-free, low
smoke.
· Temperature range from -40 °C to 120 °C.
· Mechanical strength: 30,000 Nm.
· Black coloured.
· Available pre-mounted.
· Fasteners meeting your specifications can be included.
Testing:
By UL, KEMA, Eaton and Centrilab
(reports available upon request).
Dimension diagram:
Dimensions in mm
|
Mechanical
strength |
Type
|
D ø |
L |
B |
l |
d |
H1 |
H2
|
h |
a |
|
SE 26-38
|
26-38 |
92 |
60 |
60 |
12 |
33-49 |
7 |
18 |
7 |
30.000 Nm |
 |

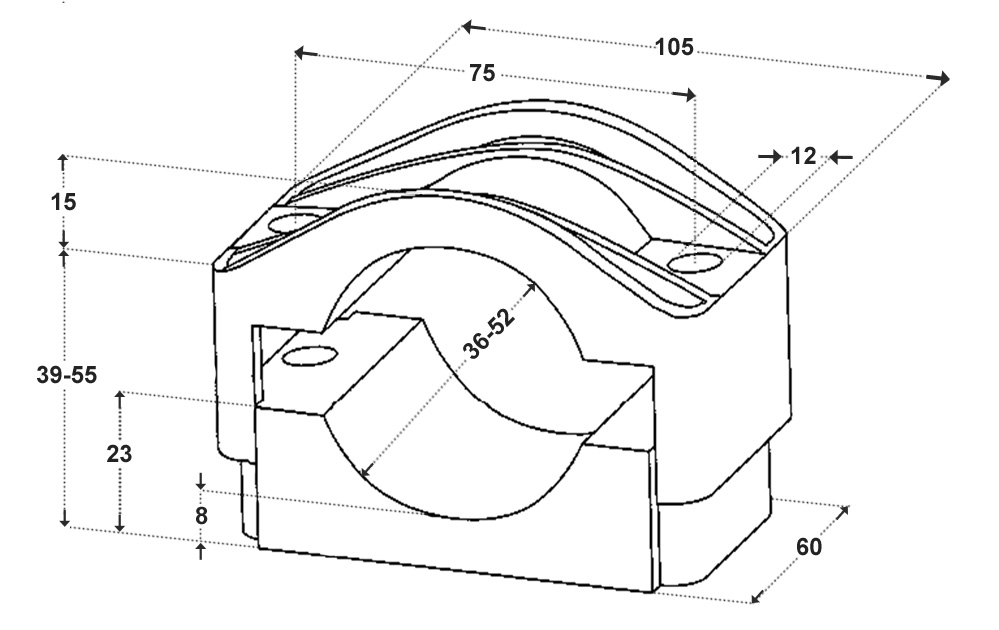

SE36-52 (Two Bolt Single Way Cleat)
Applications:
For the mounting of one single- or multi-conductor
cable. For low, medium and high voltage cables with
diameters of 36 - 52 mm as well as conduits and hoses.
Characteristics:
· Made of glass fibre reinforced polyamide (PA).
· Resistant to oils, UV, ozone, salts, moisture, acids
and even radioactive emissions.
· Self-extinguishing V-0 (UL94), halogen-free, low
smoke.
· Temperature range from -40 °C to 120 °C.
· Mechanical strength: 20,000 Nm.
· Black coloured.
· Available pre-mounted.
· Fasteners meeting your specifications can be included.
Testing:
By UL, KEMA, Eaton and Centrilab
(reports available upon request).
Dimension diagram:
Dimensions in mm
|
Mechanical
strength |
Type
|
D ø |
L |
B |
l |
d |
H1 |
H2
|
h |
a |
|
| SE 36-52
|
36-52 |
105 |
60 |
75 |
12 |
39-55 |
15 |
23 |
8 |
20.000 Nm |
|

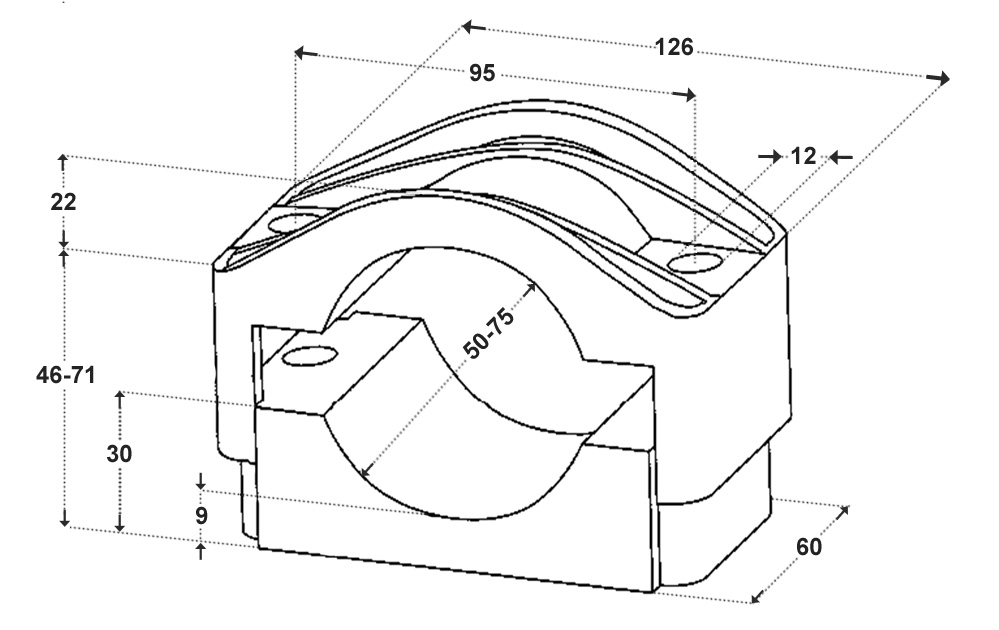

SE50-75 (Two Bolt Single Way Cleat)
Applications:
For the mounting of one single- or multi-conductor
cable. For low, medium and high voltage cables with
diameters of 50 - 75 mm as well as conduits and hoses.
Characteristics:
· Made of glass fibre reinforced polyamide (PA).
· Resistant to oils, UV, ozone, salts, moisture, acids
and even radioactive emissions.
· Self-extinguishing V-0 (UL94), halogen-free, low
smoke.
· Temperature range from -40 °C to 120 °C.
· Mechanical strength: 20,000 Nm.
· Black coloured.
· Available pre-mounted.
· Fasteners meeting your specifications can be included.
Testing:
By UL, KEMA, Eaton and Centrilab
(reports available upon request).
Dimension diagram:
Dimensions in mm
|
Mechanical
strength |
Type
|
D ø |
L |
B |
l |
d |
H1 |
H2
|
h |
a |
|
| SE 50-75
|
50-75 |
126 |
60 |
95 |
12 |
46-71 |
22 |
30 |
9 |
20.000 Nm |
 |

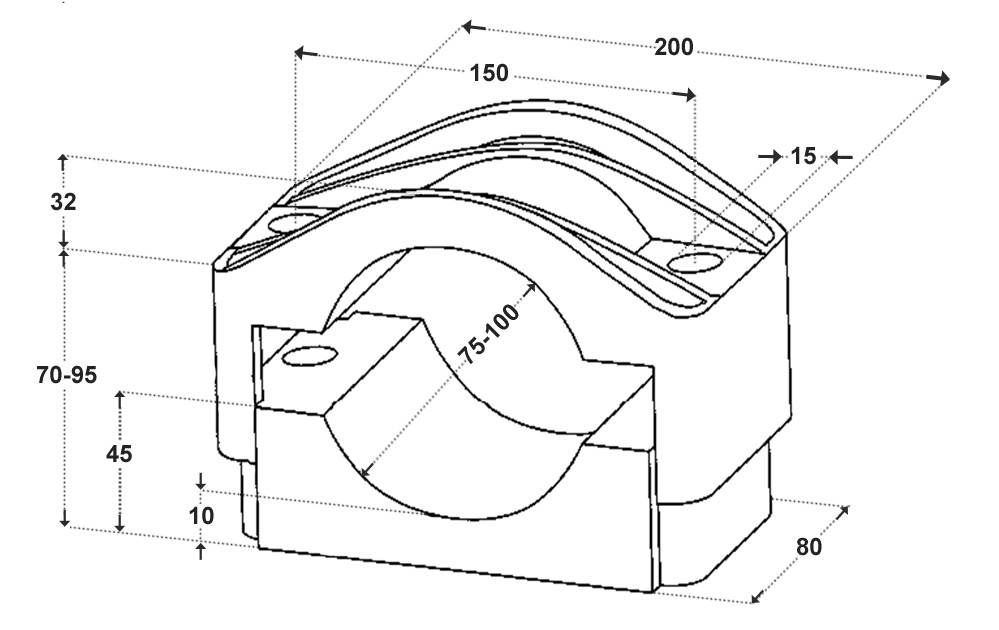

SE75-100 (Two Bolt Single Way Cleat)
Applications:
For the mounting of one single- or multi-conductor
cable. For low, medium and high voltage cables with
diameters of 75 - 100 mm as well as conduits and hoses.
Characteristics:
· Made of glass fibre reinforced polyamide (PA).
· Resistant to oils, UV, ozone, salts, moisture, acids
and even radioactive emissions.
· Self-extinguishing V-0 (UL94), halogen-free, low
smoke.
· Temperature range from -40 °C to 120 °C.
· Mechanical strength: 68,800 Nm.
· Black coloured.· Available pre-mounted.
· Fasteners meeting your specifications can be included.
Testing:
By UL, KEMA, Eaton and Centrilab
(reports available upon request).
Dimension diagram:
Dimensions in mm
|
Mechanical
strength |
Type
|
D ø |
L |
B |
l |
d |
H1 |
H2
|
h |
a |
|
| SE 75-100
|
75-100 |
200 |
80 |
150 |
12 |
70-95
|
32 |
45 |
10 |
68.800 Nm |
 |

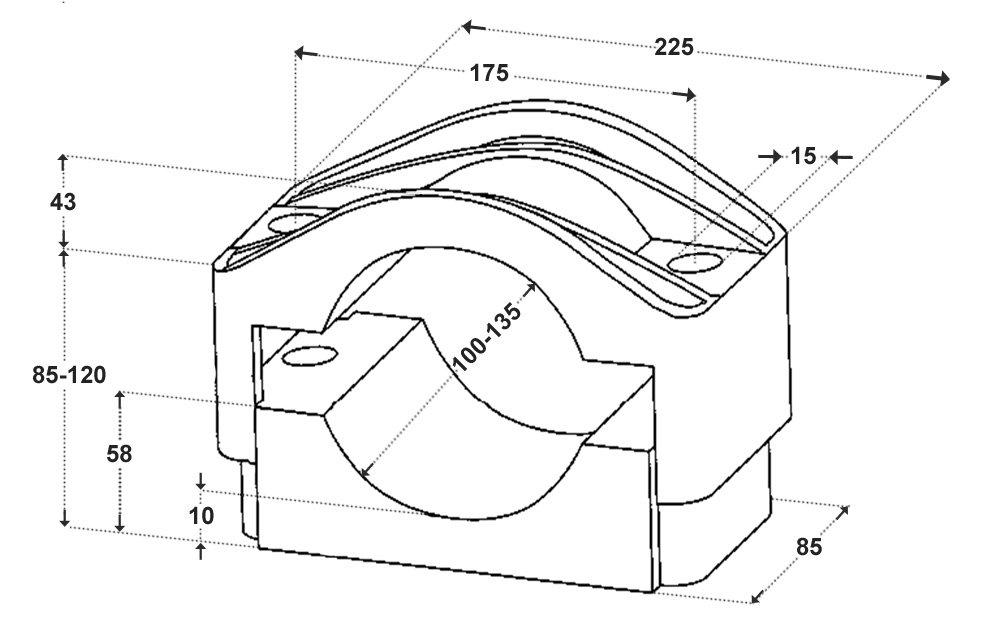

SE100-135 (Two Bolt Single Way Cleat)
Applications:
For the mounting of one single- or multi-conductor
cable. For low, medium and high voltage cables with
diameters of 100 - 135 mm as well as conduits and hoses.
Characteristics:
· Made of glass fibre reinforced polyamide (PA).
· Resistant to oils, UV, ozone, salts, moisture, acids
and even radioactive emissions.
· Self-extinguishing V-0 (UL94), halogen-free, low
smoke.
· Temperature range from -40 °C to 120 °C.
· Mechanical strength: 67,400 Nm.
· Black coloured.
· Available pre-mounted.
· Fasteners meeting your specifications can be included.
Testing:
By UL, KEMA, Eaton and Centrilab
(reports available upon request).
Dimension diagram:
Dimensions in mm
|
Mechanical
strength |
Type
|
D ø |
L |
B |
l |
d |
H1 |
H2
|
h |
a |
|
| SE
100-135 |
100-135 |
225 |
82
|
175 |
15 |
85-120 |
43 |
58 |
10 |
67.400 Nm |
 |
|
