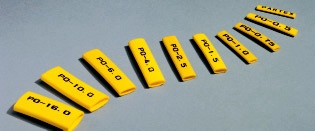

PO Oval Marker Profile for Customized Marking


PO Marker Profile

Overview

  • Oval marking profile for customized cable and wire marking.
  • Fast, single movement installation.
  • Designed for most common wire and cable areas.
  • Retains shape and grips wiring.
  • Reduces marking costs in projects subject to frequent, fast and late stage alterations.
  • PO profile can be printed on-site with the ProMark Pro Portable Marking Machine.
  • Mass-produce PO profile markers with the SP2000 marking machine.
  • PO Profile can also be supplied pre-printed with your customized marking data.
  • Also available in a halogen-free material (POZ)
  • It is possible to mount the PO-09 directly on POH or PKH holder.
  • PO-01 can be mounted directly in PT+ sleeve for cable marking.
PO Profile
PARTEX PART
NUMBER
DIAMETER RANGE AWG AREA mm PACKAGING
PO 01 1.3 - 1.8mm 23-20 0.25 250m Reel
PO 02 1.7 - 2.2mm 20-18 0.5 250m Reel, 1 x 5m disc
PO 03 2.0 - 2.5mm 18-17 0.75 250m Reel, 1 x 4m disc
PO 04 2.2 - 2.8mm 17-15 1.0 200m Reel, 1 x 4m disc
PO 05 2.7 - 3.5mm 15-13 1.5 200m Reel, 1 x 4m disc
PO 06 3.2 - 4.0mm 13-11 2.5 200m Reel, 1 x 3.5m disc
PO 07 3.8 - 4.7mm 11-9 4.0 100m Reel, 1 x 3.5m disc
PO 08 4.6 - 5.5mm 9-7 6.0 100m Reel
PO 09 5.6 - 7.0mm 7-5 10.0 50m Reel
PO 10 6.5 - 8.0mm 5-3 16.0 50m Reel
PO 11 7.0 - 9.5mm 4-3 18.0 50m Reel
PO 12 7.5 - 10.0mm 4-2 20.0 50m Reel
PO 14 9.5 - 12.0mm 1/0 25.0 50m Reel
PO 16 11.5 - 14.0mm 1/0-2/0 35.0 10m Reel
PO 18 13.5 - 16.0mm 2/0-3/0 50.0 10m Reel
PO 20 15.5 - 18.0mm 3/0-4/0 70.0 10m Reel
PO 22 17.5 - 20.0mm 4/0 95.0 10m Reel
PO 24 19.5 - 22.0mm 4/0-5/0 120.0 10m Reel
PO 26 21.5 - 24.0mm 5/0-6/0 150.0 10m Reel
PO 28 24.0 - 28.0mm 6/0-7/0 185.0 10m Reel


Specification

DESIGN: Closed oval profile in a loop for marking on-site.
MATERIAL: Cadmium and silicon free.
POZ Halogen-free version.
COLOURS: Yellow and white as standard. For other colours contact Partex.
PRINTING: Thermo-transfer printed on site with ProMark and SP2000 marking machines; Ready printed from Partex as customized markers.
TEMPERATURE RANGE: PO: Shape permanence from -30C to +60C
POZ: Shape permanence from -30C to +90C
DURABILITY: Flammability resistance according to UV94-VO, good resistance to chemicals, gamma and UV rays. For applications in hostile environments, please contact us for information.

Application

Application of PO markers
