PF Cable Marking Labels

PF Marking Label Material

Overview

  • Halogen-free label material for cables, wires, cabinets and components.
  • Print markers on-site using a matrix printer, laser printer or plotter.
  • Easy to separate polyester foil, specially pre-processed for printing.
  • Mark wires in combination with PT Holders.
  • Mark cables and pipes in combination with PM holders and cable ties.
  • Mark control panels and components in combination with transparent holders and the PS rail system.
  • Fast, convenient marking on-site with Partex Winsign or X-Soft software for Windows.
PF Labels
PARTEX PART NUMBER DESCRIPTION No. PIECES PER PACK HOLDER
PF 10/15 White Inserts 792 labels per sheet/10 sheets per pack PT
PF 10/15 Yellow Inserts 792 labels per sheet/10 sheets per pack PT
PF 10/21 White Inserts 594 labels per sheet/10 sheets per pack PT, PM
PF 10/21 Yellow Inserts 594 labels per sheet/10 sheets per pack PT, PM
PF 20/17.5 White Inserts 352 labels per sheet/10 sheets per pack PM, PS
PF 20/17.5 Yellow Inserts 352 labels per sheet/10 sheets per pack PM, PS


Specification

DESIGN: Perforated label material. Folded sheets A4 width and tractor feed. 12" sheet length with tear initiation.
MATERIAL: Polyester foil, specially pre-processed for printing.
COLOURS: Available in white and yellow.
TEMPERATURE RESISTANCE: From -30°C to +120°C. NB. Withstands laser printing.
DURABILITY: Withstands most solvents. For use in extreme environments, please contact us.

pt/pf insertion tool

PF Insertion Tool

  • Insertion tool for putting the two lengths of PF inserts into the PT holders.
PARTEX PART NUMBER
PF Tool

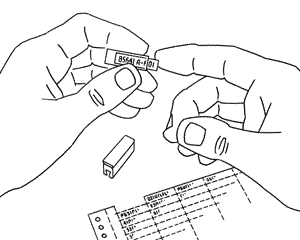

Application

Application of PT / PF marking system
