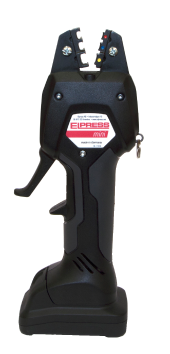

Elpress Mini PVL130S Electro Mechanical Crimping Tool
 PVL130S
- Elpress mini tool with intuitive Power Sense function
The PVL130S combines the benfits of manual crimping
tools along with the advantages of battery-powered hydraulic
crimping tools. Its light weight means the tool is easy to use
and, in combination with the powerful drive technology, results
in a rapid crimping process at optimum quality.
Characteristics:
• Single-handed operation for easy control of all tool functions
• Electronic control with locking function and monitoring for
complete closing of the dies
• A safety clip is used as fall protection when used outdoors
• Motor protection ensures safety in cases of overload
• Easy and comfortable to use with one hand thanks to its
ergonomic 2-component housing with grip-friendly protection
• Extremely lightweight and rapid crimping process for maximum
efficiency
• Powerful drive technology for effortless operations
• High-performance 10.8 V Li-Ion battery – with indication of
charging status
• LED work lighting
• Automatic return of dies when crimping is completed
• Manual return of dies, where necessary
The tool is delivered without dies, for suitable dies,
see table below.
|
Application |
Area |
Dies |
Crimp Range |
 |
| Insulated |
0.5 - 6mm˛ |
SA0760 |
 |
Uninsulated
Uninsulated
Uninsulated |
0.25 -
2.5mm˛
0.5 - 6mm˛
4 - 10mm˛ |
KB0325
RB0560
WB4099 |
 |
| End Sleeves |
0.5 - 6mm˛
4 - 10mm˛
10 - 25mm˛
35 - 50mm˛ |
EB0560
EB4010
EB1025
EB3550 |
 |
*Technical Data Subject to Change
Without Notice
Elpress Mini PVL130S Electro Mechanical Crimping Tool Data Sheet
|
