Dutchclamp - Cable clamps and blocks for mounting low, medium and high voltage cables

Triple Types (Trefoil Cleats)

Triple 27-38 (Trefoil Cleat)

Applications:
For the mounting of three single- or multi-conductor cables in a triangular configuration.

For low, medium and high voltage cables with diameters of 27 - 38 mm as well as conduits and hoses.

Characteristics:

Made of glass fibre reinforced polyamide (PA).

Resistant to oils, UV, ozone, salts, moisture, acids and even radioactive emissions.

Self-extinguishing V-0 (UL94), halogen-free, low smoke.

Temperature range from -40 C to 120 C.

Mechanical strength: 35,900 Nm.

The mounting holes are 15.5 mm, allowing the allthread to be extended with threaded bushes at any desired location, thereby eliminating the possibility of damage when cables are installed in multiple layers. The existing configuration can be expanded at any time... easily, simply and at little cost.

The centre of the lower shell has an extra mounting hole for optional mounting using a single piece of allthread or a single bolt.

Black coloured.

Stackable.

Available pre-mounted.

Fasteners meeting your specifications can be included.


Testing:
By UL, KEMA, Eaton and Centrilab
(reports available upon request).

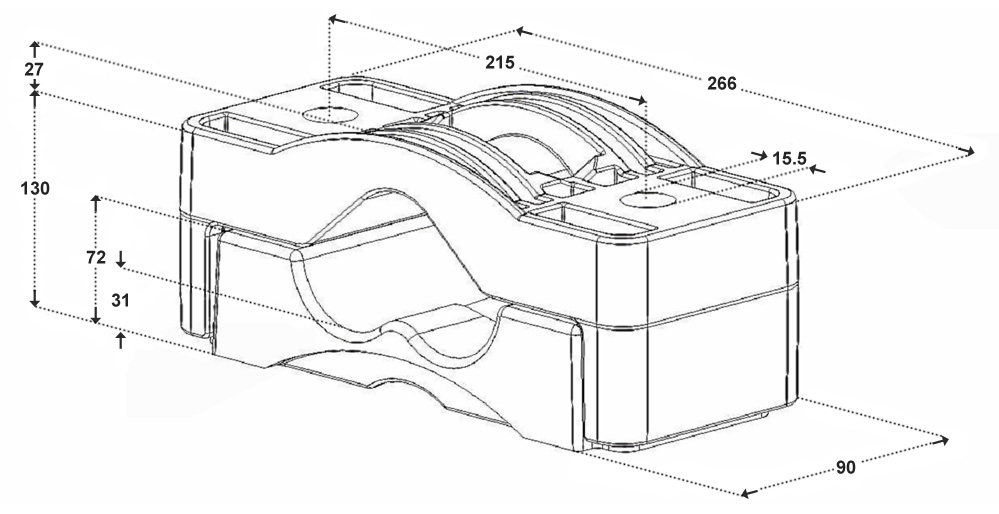

Dimension diagram:

Dimensions in mm

Type

D L B l d H1 H2

h a
Triple 27-38 3x 27-38

180 75 125 15.5

63 12

35 16.5
Triple 38-51 (Trefoil Cleat)

Applications:
For the mounting of three single- or multi-conductor cables in a triangular configuration.

For low, medium and high voltage cables with diameters of 38 - 51 mm as well as conduits and hoses.

Characteristics:

Made of glass fibre reinforced polyamide (PA).

Resistant to oils, UV, ozone, salts, moisture, acids and even radioactive emissions.

Self-extinguishing V-0 (UL94), halogen-free, low smoke.

Temperature range from -40 C to 120 C.

Mechanical strength: 39,800 Nm.

The mounting holes are 15.5 mm, allowing the allthread to be extended with threaded bushes at any desired location, thereby eliminating the possibility of damage when cables are installed in multiple layers. The existing configuration can be expanded at any time... easily, simply and at little cost.

The centre of the lower shell has an extra mounting hole for optional mounting using a single piece of allthread or a single bolt. Black coloured.

Stackable.

Available pre-mounted.

Fasteners meeting your specifications can be included.

Testing:
By UL, KEMA, Eaton and Centrilab
(reports available upon request).

Dimension diagram:

Dimensions in mm

Type

D L B l d H1 H2

h a
Triple 38-51 3x 38-51

195 80 145 15.5

84

16

45 20
Triple 51-69 (Trefoil Cleat)

Applications:

For the mounting of three single- or multi-conductor cables in a triangular configuration.

For low, medium and high voltage cables with diameters of 51 - 69 mm as well as conduits and hoses.

Characteristics:

Made of glass fibre reinforced polyamide (PA).

Resistant to oils, UV, ozone, salts, moisture, acids and even radioactive emissions.

Self-extinguishing V-0 (UL94), halogen-free, low smoke.

Temperature range from -40 C to 120 C.

Mechanical strength: 69,900 Nm.

The mounting holes are 15.5 mm, allowing the allthread to be extended with threaded bushes at any desired location, thereby eliminating the possibility of damage when cables are installed in multiple layers. The existing configuration can be expanded at any time... easily, simply and at little cost.

The centre of the lower shell has an extra mounting hole for optional mounting using a single piece of allthread or a single bolt.

Black coloured.

Stackable.

Available pre-mounted.

Fasteners meeting your specifications can be included.

Testing:
By UL, KEMA, Eaton and Centrilab
(reports available upon request).

Dimension diagram:

Dimensions in mm

Type

D L B l d H1 H2

h a
Triple 51-69 3x 51-69

220 85 170 15.5

109

21

58

26
Triple 69-90 (Trefoil Cleat)

Applications:
For the mounting of three single- or multi-conductor cables in a triangular configuration.

For low, medium and high voltage cables with diameters of 69 - 90 mm as well as conduits and hoses.

Characteristics:

Made of glass fibre reinforced polyamide (PA).

Resistant to oils, UV, ozone, salts, moisture, acids and even radioactive emissions.

Self-extinguishing V-0 (UL94), halogen-free, low smoke.

Temperature range from -40 C to 120 C.

Mechanical strength: 56,700 Nm.

The mounting holes are 15.5 mm, allowing the allthread to be extended with threaded bushes at any desired location, thereby eliminating the possibility of damage when cables are installed in multiple layers. The existing configuration can be expanded at any time... easily, simply and at little cost.

The centre of the lower shell has an extra mounting hole for optional mounting using a single piece of allthread or a single bolt.

Black coloured.

Stackable.

Available pre-mounted.

Fasteners meeting your specifications can be included.

Testing:
By UL, KEMA, Eaton and Centrilab
(reports available upon request).

Dimension diagram:

Dimensions in mm

Type

D L B l d H1 H2

h a
Triple 69-90 3x 69-90 252 90 215 15.5 134 29 72 30
Triple 90-118 (Trefoil Cleat)

Applications:
For the mounting of three single- or multi-conductor cables in a triangular configuration.

For low, medium and high voltage cables with diameters of 90 - 118 mm as well as conduits and hoses.

Characteristics:

Made of glass fibre reinforced polyamide (PA).

Resistant to oils, UV, ozone, salts, moisture, acids and even radioactive emissions.

Self-extinguishing V-0 (UL94), halogen-free, low smoke.

Temperature range from -40 C to 120 C.

Mechanical strength: 54,300 Nm.

The mounting holes are 15.5 mm, allowing the allthread to be extended with threaded bushes at any desired location, thereby eliminating the possibility of damage when cables are installed in multiple layers. The existing configuration can be expanded at any time... easily, simply and at little cost.

The centre of the lower shell has an extra mounting hole for optional mounting using a single piece of allthread or a single bolt.

Black coloured.

Stackable.

Available pre-mounted.

Fasteners meeting your specifications can be included.

Testing:
By UL, KEMA, Eaton and Centrilab
(reports available upon request).

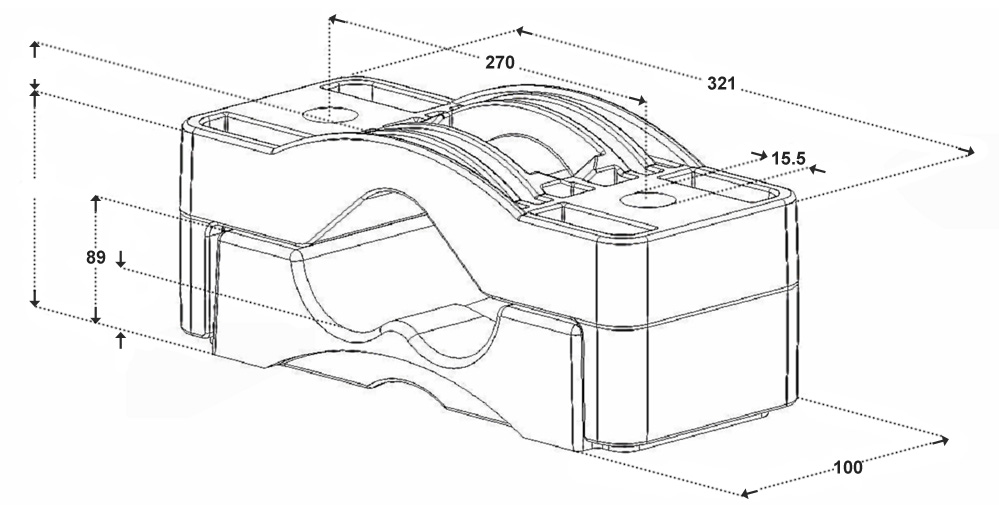

Dimension diagram:

Dimensions in mm

Type

D L B l d H1 H2

h a
Triple 90-118 3x 90-118 321 100 270 15.5 180 27 89 33
