CCG Foundation / Roof Entry Junction Box For municipal and overhead single phase service connections

Navigate to: CCG Home | CCG Junction Boxes
CCG Junction Boxes for Commercial use
CCG-Foundation-Roof-Entry-Junction-Box

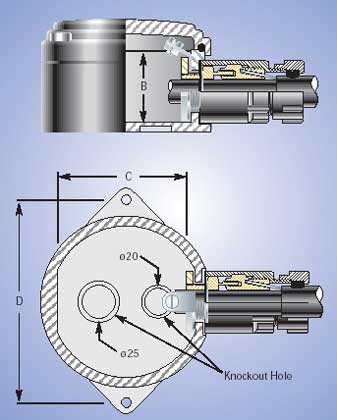

CCG Foundation / Roof Entry Junction Box For municipal and overhead single phase service connections.

Features and Benefits

• For municipal service connections.
• Manufactured from impact corrosion and UV resistant glass reinforced polyester compound.
• Screw-on lid provides ease of installation locked with a special key prevents unauthorised tampering.
• Integral cable gland and lid seal provide dust and waterproof seal.
• Knock-out holes provide for conduit entry at rear of box.
• Internal earth connector provided.







CCG reserves the right to make alterations to the technical data, dimensions, designs and products available without notice. The illustrations cannot be considered binding. Please contact us for assistance.

Download Data Sheet

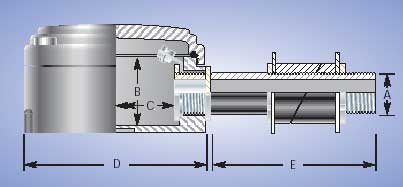

CCG Roof Entry Box for overhead service connections

Features and Benefits

• For overhead single phase service connections.
• Manufactured from non-conductive non-corrosive UV resistant glass reinforced polyester compound.
• Screw-on lid provides ease of installation locked with a special key prevents unauthorised tampering.
• Box is mounted through corrugated iron or asbestos type roof sheeting.
• Roof entry sealed by rubber bush.
• Terminal connectors and integral earth connector supplied with box.





CCG reserves the right to make alterations to the technical data, dimensions, designs and products available without notice. The illustrations cannot be considered binding. Please contact us for assistance.

Download Data Sheet
